Description

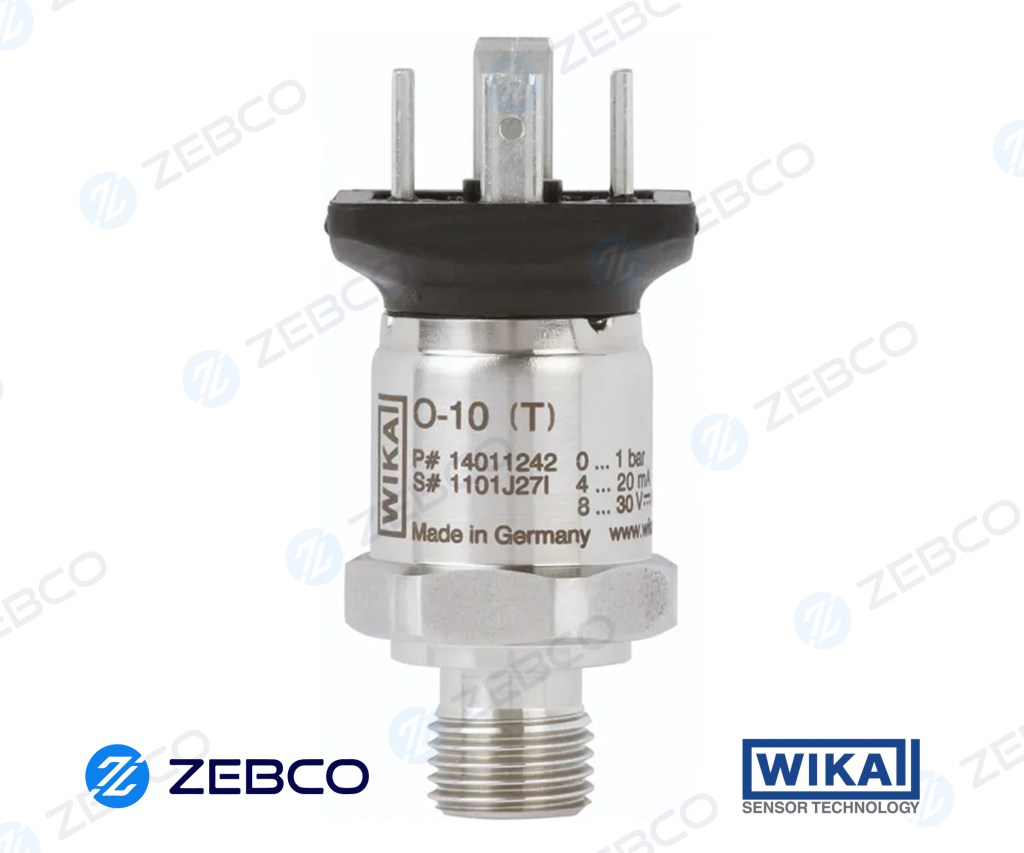

The model O-10 pressure sensor has been developed for a wide variety of industrial applications. The large range of process and electrical connections as well as all commonly used pressure ranges and output signals set the model O-10 apart.
For applications in which water is used as a medium, we recommend a 5-fold overload safety in combination with a condensation-tight case.
Due to its specifications, features, and price, the pressure sensor is ideally suited to OEM applications, with an annual quantity requirement of more than 1,000 units per article number.
Accordingly, the minimum order quantity is 50 units per article number. The model O-10 has been designed specifically for the demands of the global market. The pressure sensor offers international units and the corresponding approvals for the North American and Russian markets.
It goes without saying that the model O-10 can be delivered with customer-specific labelling (e.g. company logo and instrument designation).
This device is designed for use in a wide range of industrial applications, including hydraulics and pneumatics, pumps and compressors, machine building, and building services. It ensures reliable pressure measurement in demanding environments, making it an essential component in various mechanical and engineering systems.
Featuring measuring ranges from 0 to 6 bar up to 0 to 600 bar, the device offers precise readings with a non-linearity of just 0.5%, ensuring accuracy in critical applications. It supports standard industrial signals, making integration into existing systems seamless and efficient.
For electrical connectivity, the device is available with multiple options, including angular connectors (form A and C), circular connector (M12 x 1), Metri-Pack series 150, and cable outlets (2 meters, shielded or unshielded). These options provide flexibility for various installation requirements.
Additionally, the device is compatible with a wide range of internationally recognized process connections, allowing it to be used in diverse global applications without compatibility concerns.
Model O-10 (T) Key Specifications:
|
Specification |
Details |
|---|---|
|
Measuring Range (Gauge Pressure) |
0 … 6 to 0 … 600 bar |
|
Output Signals |
4 … 20 mA, 0.5 … 4.5V, 0 … 5V, 1 … 5V, 0 … 10V |
|
Power Supply |
8 … 30V DC (14 … 30V DC for 0 … 10V output) |
|
Accuracy |
≤ ±1.2 % of span |
|
Temperature Range |
-30 … +100 °C |
|
Ingress Protection |
IP65, IP67 |
Additional Features:
|
Feature |
Details |
|---|---|
|
Overload Safety |
2 times (3 times on request) |
|
Shock Resistance |
40g (6ms) |
|
Vibration Resistance |
20g (20 – 2,000 Hz) |
|
Service Life |
10 million load cycles |
